Pack interphone Hikvision

Hikvision building visual intercom doorbell villa access intercom smart home system mobile phone remote unlock

Model: Video intercom Villa doorbell Access control system

Product specification classification:
  1. AB: DS-K4E100 Spiritual Lock *1pcs
  2. A: 8102-1C door machine (with accessories) *1pcs
  3. B: 8102-1A door machine (with accessories) *1pcs
  4. C: 8102-1A 2 button door machine (including accessories) * 1pcs
  5. D: 8102-1A 4 button door machine (including accessories) * 1pcs
  6. E:3002 door machine (with accessories)*1pcs
  7. F: 7 inch 1310-A indoor unit (with accessories) * 1pcs
  8. G: 7 inch 6300-A indoor unit (with accessories) *1pcs
  9. H: 7 inch black 6320-A indoor unit (economical with accessories) * 1pcs
  10. I: 7 inch 8301 indoor unit (with accessories) *1pcs
  11. J: 10 inch 85 series indoor unit (with accessories) *1pcs
  12. K: 8102-1C door machine *1pcs + 7 inch 6300-A indoor unit * 1pcs (including accessories)
  13. L: 8102-1C door machine *1pcs + 7 inch 6300-A indoor unit * 2pcs + 6 port decoder * 1pcs (including accessories)
  14. M: 8102-1C door machine * 2pcs + 7 inch 6300-A indoor unit * 1pcs + 6 port decoder * 1pcs (including accessories)
  15. N: 8102-1C door machine * 2pcs + 7 inch 6300-A indoor unit * 2pcs + 6 port decoder * 1pcs (including accessories)
  16. O:8102-1C door machine *1pcs+7 inch black 6320-A indoor unit *1pcs (including accessories)
  17. P: 8102-1C door machine *1pcs + 7 inch black 6320-A indoor unit * 2pcs + 6 port decoder * 1pcs (including accessories)
  18. Q: 8102-1C door machine * 2pcs + 7 inch black 6320-A indoor unit * 1pcs + 6 port decoder * 1pcs (including accessories)
  19. R: 8102-1A door machine *1pcs + 7 inch 8301-A indoor unit * 1pcs (including accessories)
  20. S: 8102-1A door machine *1pcs + 7 inch 8301-A indoor unit * 2pcs + 6 port decoder * 1pcs (including accessories)
  21. T: 8102-1A door machine * 2pcs + 7 inch 8301-A indoor unit * 1pcs + 6 port decoder * 1pcs (including accessories)
  22. U:8102-1A door machine *1pcs+10 inch 85 series indoor unit *1pcs (including accessories)
  23. V: 8102-1A door machine *1pcs + 10 inch 85 series indoor unit * 2pcs (including accessories) + 6 port decoder * 1pcs (including accessories)
  24. W: 8102-1A door machine * 2pcs + 10 inch 85 series indoor unit * 1pcs + 6 port decoder * 1pcs (including accessories)
  25. X: 6-port power supply decoder with power supply *1pcs
  26. Y: Indoor unit 1102-A (with accessories)* 1pcs
  27. Z: IC keychain *10pcs
  28. AA: IC blank card *10pcs



Door machine Model parameters Comparison:
(1 door machine can drag 5 indoor units, call by door machine, so the indoor unit will all sound)
The package defaults to the dedicated model 8102-1A, or you can contact customer service to change to the regular model 1102-1A.
1

model

1102-1A (regular)

8102-1C (specialized)

8102-1A (specialized)

8102-1A (2 button)

8102-1A (4 button)

Housing material

Metal Material

Plastic steel

Metal Material

camera

1.3 million pixels

Fill light

Infrared fill light

Audio input

Built-in omnidirectional microphone

Audio output

Built-in speaker

Built-in card reader

Internal IC card read head

Open button

Open the door by opening the door

power supply

POE powered or DC 12V 2A

Protection level

IP65

Dimensions

182*100*32.5mm

164*97*40.6mm

182*100*32.5mm

Bottom box size

Self-contained special embedded bottom box

Self-contained 86 bottom box

Self-contained special embedded bottom box

Warranty period

Warranty 1 year regular quality

Warranty 2 years dedicated quality


Intra-room model number comparison (four indoor units can be used with any door machine):
2


model

1310 - A (Regular)

6300 - A (special use)

8301 - A (special use)

6320 - A (special use)

Series 85 (special use)

Display screen

7 inch color TFT LCD

10 inch color TFT LCD

Resolution

720* 576

800* 480

1024 *600

Operation method

Capacitive touch screen

camera

/

/

CMOS 30W pixel

/

/

SD card

/

/

Maximum support 32G

/

/

Power consumption

≤10W

power supply

POE (Special Decoder) or DC 12V 2A

POE (decoder) or DC12V2A

Alarm input

8 road zone

Dimensions

195.8 *32. 8 *17.5mm

179*164.5*108mm

217 *142 *26mm

200*142*23 .5mm

254 *166*147mm

Installation method

Self-contained 86 bottom box pre-buried

emote visual / interactive

stand by

Warranty period

Warranty 1 year, regular quality

2 years warranty, special quality


21234

About Indoor unit Description
Indoor unit difference:
The 1310-A ​​and 6300-A pairs 8301-A are old operating systems, all of which are 7-inch screens. The resolution materials are different in appearance. It is necessary to cooperate with the multi-button door machine to enable the indoor unit to communicate with the indoor unit.
The 6320-A and 8501-A are new operating systems with high resolution. The 8501-A is a 10-inch screen and the 6320-A is a 7-inch screen. It is also possible to talk between the indoor unit and the indoor unit without the need for a multi-button door sill.

About Indoor unit wifi connection
In the case of an indoor unit, be sure to connect the network cable!
In the case of multiple indoor units, one is used as an indoor host, the other is used as an indoor extension, and only an indoor extension can use wifi!

The installation method of the indoor unit: self-contained 86 bottom box, the wiring should be buried in advance.

Indoor unit installation
1. Fix the indoor unit hanging plate to 86 boxes (86 boxes are embedded in the wall during the building construction process) and screw them.
2. Align the indoor unit slot with the hanging plate pin, slide the indoor unit down, and fix the indoor unit to the hanging plate to complete the installation.

56

1 button door machine, press the doorbell, a full ring, the door machine and the indoor unit can talk.
There is no communication between the internal system and the indoor unit in the old system.
The new system can communicate with the indoor unit and the indoor unit.

Which layer of the machine is connected to the machine, which is the floor machine and the door machine to talk to each other.

Multiple button door machines, each button can only call the corresponding room machine, and the room machine can answer the door machine after listening.
 In the new system room or the old system room, the multi-key machine can communicate in the room.

The figure shows that there are two key presses, and the multi-key press has two specifications: 2 and 4.


For equipment wiring and other instructions:

In order to avoid the purchase of goods, please be sure to find out the equipment and then place an order!
Reminder 1: The product content displayed on the picture of the meal is the actual product. If you need other goods, please contact the customer service and purchase it!
Wake up 2 : The defaults of the equipment are all original and unopened . Firstly , the computer will be activated and tested again . If necessary , you can contact the customer service and try again . This link has a tutorial below

In-room machine default project password: 888999; unlock password: 123456;
Threat password: 654321; arming / disarming password: 123456.

The door card uses the mother card to add a card step:
 In the case where the doorbell can be used normally, brush the mother card in the door card swipe area, prompt "Please send the card" and then brush the IC card to indicate the sound "di".
If there are more than one continuous brush, after brushing, brush the mother card and prompt "end the card".


Connection line type

Cable specification

Door machine , indoor machine power line

RVV2*1.0

Door machine , indoor machine network cable

Super five network cable

Connect electric lock / magnetic lock , electric lock

RVV4*1.0/RVV2*1.0

Go out button press wire

RVV2*0.5


Net water crystal head method T568B : white orange, orange, white green, blue, white blue, green, white brown, brown
1, the illustrated decoder is versatile , can not be replaced by POE switch , the decoder can not be monitored or other equipment , the actual test is invalid !
2, the phone APP remote description: on the basis of the following wiring connection, then connect the host in the room to the wifi of the router. It is not connected to a wireless AP or an external network cable. This method is not effective.

Mobile phone AP P Up to two mobile phones at the same time log in an account number to use !


Key explanation! Key explanation! Key explanation!

The mobile remote indoor host can only connect to the wifi of the ordinary home router, does not support the wireless AP or AP ceiling full coverage of the router, does not support the enterprise router, does not support the wired external network. If the phone is offline, please check the above instructions.

Connect with the switch as shown below:

Door machine does not support connecting door opener, remote control electric door, motor!

Video intercom magnetic lock wiring diagram
1
Video intercom electronic control lock wiring diagram
2

Connect with the decoder (POE power supply) as shown below:

The door machine does not support the door opener, remote control electric door, motor!

Video intercom magnetic lock POE wiring diagram
0
Video intercom electronic control lock POE wiring diagram
4

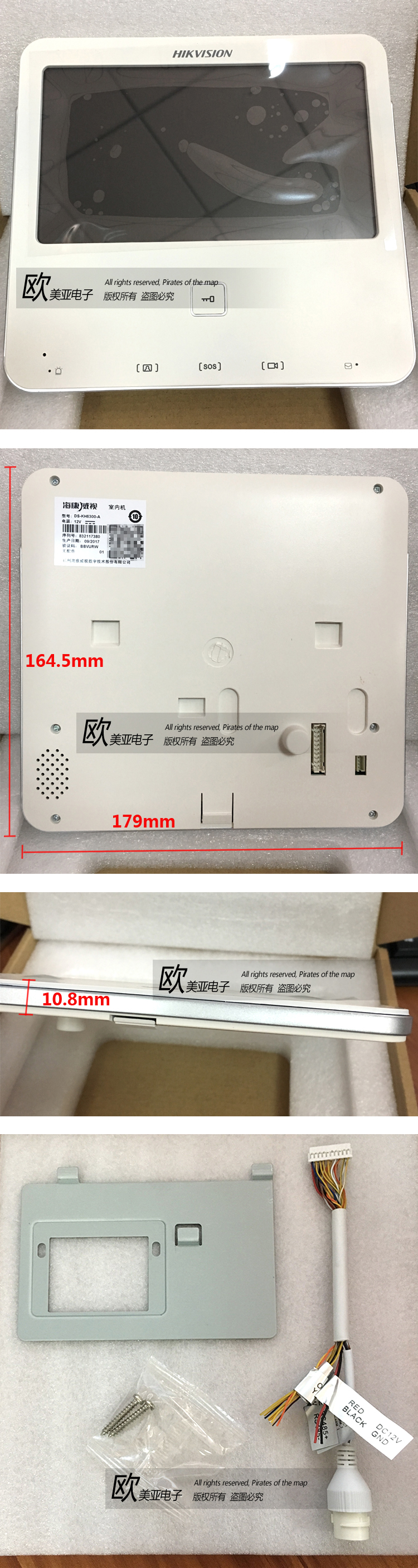

1310-A indoor unit real shot:

1

6300-A indoor unit real shot:

8301-A indoor unit real shot:


2

85 series indoor unit real shot:

3

6320-A indoor unit Real shot:

4

8102-1C Door Machine Real shot: Size (164*97*40.6mm)

0

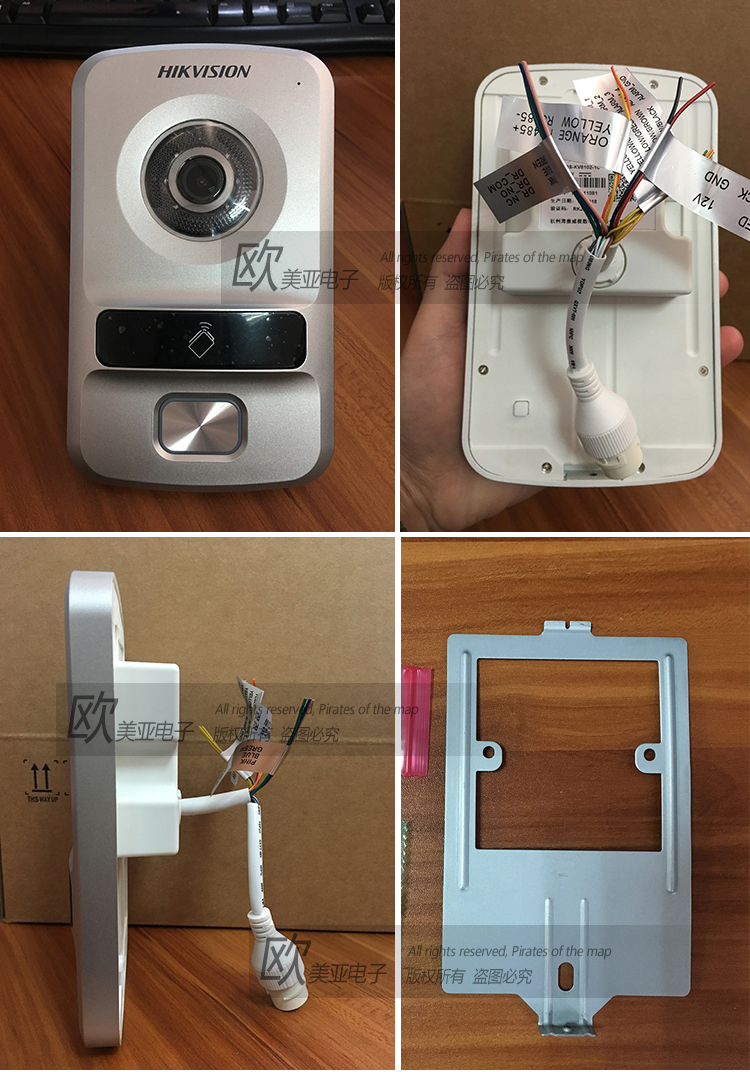

8102-1A Door Machine Real shot:





Note: 3 is the back of the door machine, 4 is the pre-buried bottom box for the door machine, 2 is the effect of installing the bottom box, the tail line of the door machine can not be hidden in the bottom box, so when squeezing the bottom box, it is necessary to dig Deep, the line stays outside the bottom box!



1

If you want to connect the lock, please save the mother card! ! ! ! !

Note: The mother card in the door machine package is only 1pcs, corresponding to the serial number of the door machine, used for card issuance, please be sure to save it. If it is lost, it cannot be cancelled.


2

Visual Intercom Debugging Steps Tutorial:
1 · Enter Haikang Weishi official website, download 4200 client software
2 · Modify the I P address of the local connection of the computer to fix I P
3 · Activate the online device > > Modify IP> > Add device
4 · Remote configuration > > Modify the room number in the room > > Close door machine IP

Note! If you want to connect an electronically controlled lock or a magnetic lock, you can modify the opening time:

Select the door machine - remote configuration - intercom - door ban and stair control - open time.

Debugging with 1 door machine + 1 indoor unit! By pressing the doorbell, the ringing of the room can be answered by the intercom. The center abnormality is related to the management platform and is not affected.




3

Mobile APP only supports mainland mobile phone number registration




Mobile APP operation steps

1. After the doorbell can be used normally, connect the wifi of the main unit in the room (if there is more than one indoor unit, the mobile machine only needs to add the main unit in the room).
2. Download the app "iVMS-4500S". An Zhuo hand machine into the sea Kangwei official website " service
Service support - download - mobile phone monitoring software. I found the "iVMS-4500 Sentinels (Android) VI · 6" with the phone browser to scan the software 2D code download installation.
3. Use the APP to scan the 2D code of the back label of the main unit in the room.
4. After adding to the mobile phone, press the doorbell to receive the message push, you can listen to the remote and the interviewer, or you can unlock the phone. The phone can be monitored in real time.

Can't receive the news push?
1 · Check if the wifi in the next room is connected normally, not even A P
2 · Check if the mobile phone AP P is running, or restricts the message push
3 · Delete the device and add it again. For other mobile phone tests, the most 2 mobile phones will be logged in at the same time.


4

Press the doorbell, the Android system directly pops up the screen; the Apple system first receives the message push, click on the APP to see the picture
